RR7-H FLOW FORM Hybrid Beadlock Wheel | BRUSHED ALUMINUM

Our best-selling wheel redesigned

Elevate your driving experience with our cutting-edge flow-formed RR7-H wheels, meticulously crafted to embody precision, strength, and performance. Engineered with state-of-the-art technology, these wheels are more than just an upgrade—they're a game-changer for your vehicle.

Regular price$ 325.00
/
Shipping calculated at checkout.

  • In stock, ready to ship
  • Backordered, shipping soon

 More payment options

Specifications

Size: 17x8.5
Bolt Pattern: 6x5.5/6x139.7
Center bore for 6x5.5 -12: 106.1 mm (hub-centric for Toyota trucks and GX)
Center bore for 6x5.5 +25: 95.3 mm (hub-centric for 24+ Tacoma, 22+ Tundra and GX550)

Load Rating: 2500 lbs
Backspacing for +25 is 5.73", -12 is 4.28"

Unmatched Strength: Our flow-formed wheels are forged under high pressure and heat, enhancing their structural integrity. This process results in a wheel with exceptional strength-to-weight ratio, ensuring durability and resilience against the toughest road conditions.

Lightweight Marvels: Witness a transformation in your vehicle's handling and agility. These wheels boast a lightweight composition, reducing unsprung mass, which means improved acceleration, braking, and overall responsiveness, offering you the thrill of a dynamic driving experience.

Enhanced Performance: Say goodbye to compromises. Our flow-formed wheels are meticulously designed to optimize airflow and heat dissipation, keeping brake temperatures in check. This superior heat management translates into consistent braking performance, allowing you to push the limits on both the track and the street.

Sleek Design, Customizable Options: Beyond their outstanding performance, our wheels elevate your vehicle's aesthetics. With a range of finishes and designs, you can personalize your ride to reflect your style while enjoying the benefits of top-tier engineering.

Versatility and Reliability: Whether you're navigating city streets or exploring rugged terrains, these wheels are crafted to excel. Their versatility and reliability ensure they're ready for any adventure you embark upon, promising a seamless blend of performance and dependability.

All orders ship with Fedex or UPS ground

-all wheels include ABS center caps

-aftermarket lug nuts with a conical seat will need to be purchased separately

-compatible with TPMS

premium quality

Flow Form wheels provide a high-quality wheel at a comparable price to a gravity-cast alternative

embossed center cap

All wheels now come with an upgraded center cap that fits flawlessly over the center bore and showcases an embossed RRW logo, eliminating the need for a logo decal

more options than ever

Now available in a wider range of sizes and offsets for vehicle-specific fitments

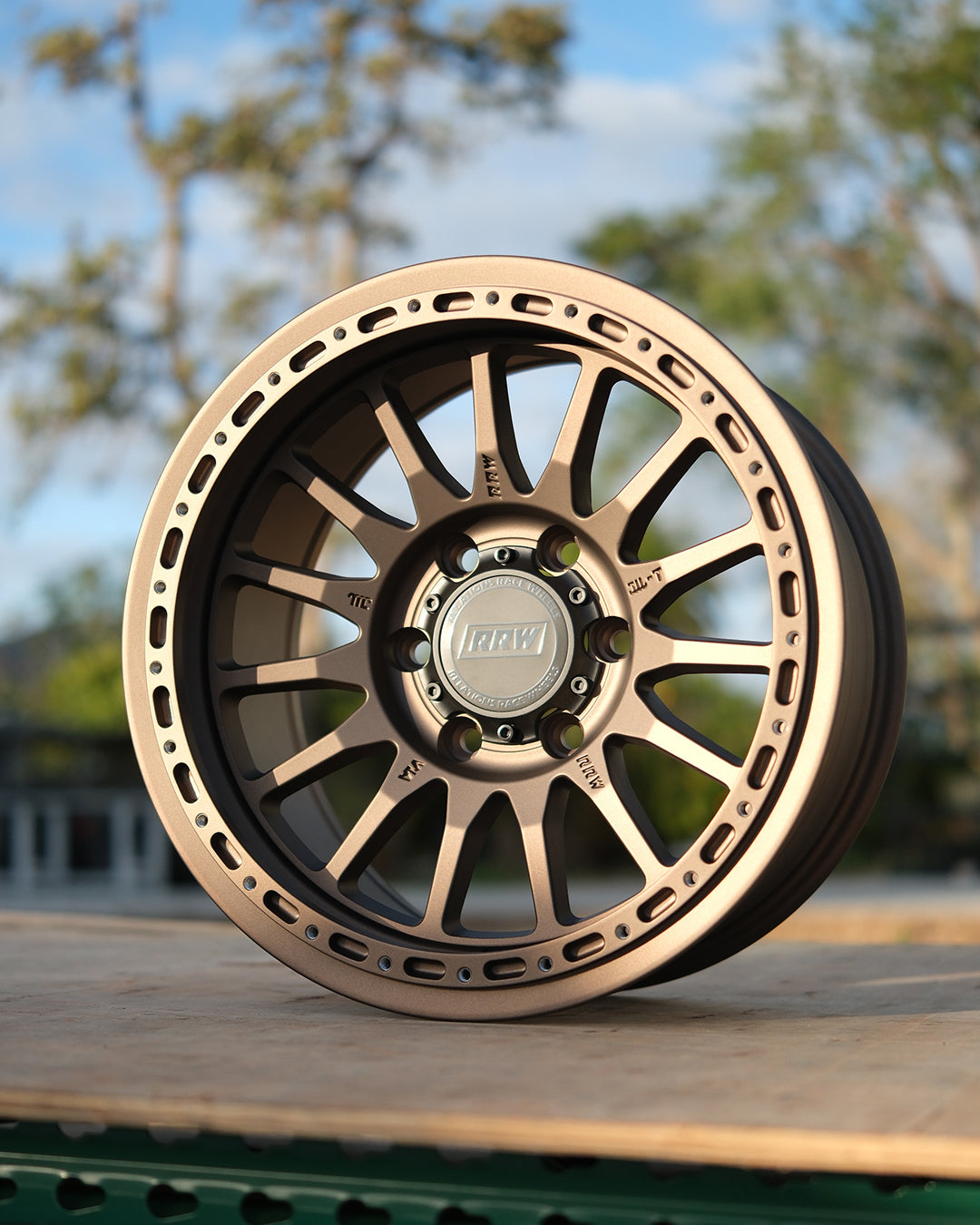

RR7-H 17x8.5

MEASUREMENTS & SPECS*

+25: 24 lbs, 5.73" backspacing, 95.1mm CB
+0:
23.5 lbs, 4.75" backspacing, 106.1mm CB
-12: 23.8 lbs, 4.28" backspacing, 106.1mm CB
-25: 27.6lbs (12.5kg), 3.77" backspacing, 106.1mm CB

Hub-centric fit for most trucks
Includes RRW embossed center caps

*approximations, based on a 6x139.7/6x5.5 bolt pattern wheel

Pre - Order: RR7 - H FLOW FORM Hybrid Beadlock Wheel | MATTE BLACK - RRW Relations Race Wheels

frequently asked questions

Yes, aftermarket lug nuts with a conical seat will need to be purchased separately. OEM lug nuts will not work.

OEM TPMS will work - the shop that installs your wheels should have an adapter available.

Yes, hybrid wheels can be used as is, without rings. Rings are not mandatory. If you later decide to add rings, you won't need to rebalance your wheels.

Yes, all of our wheels are street legal and DOT approved. The beadlock ring and mounting the wheel/tire as a beadlock is for offroad use only.

Yes, our wheels are hub-centric for most trucks (Tacoma, 4Runner, Tundra, Landcruiser, GX470/GX460, GX550, F150). For all other trucks, refer to our FAQ page for recommended hub ring sizes.

Yes, all wheels include ABS center caps. Billet caps are also offered as an upgrade and will work with all wheels.

Opt for the ring that you will use for its intended purpose. The primary function of the beadlock ring is to clamp the tire bead, which will leave a gap between the wheel and ring when not installed as designed.

It depends on setup. Is your truck lifted or stock height? Stock height trucks are best suited for +0 offset. The more negative the offset, the more the wheels will poke out past the fenders.

At this time, we only ship to the contiguous US States, Hawaii and Canada. For shipping inquiries outside of those regions, please reach out to our dealers Custom Offsets and Trail Built.

protect your wheel in any terrain

SHOP PROTECTION RINGS

air down without worry

shop beadlock rings
