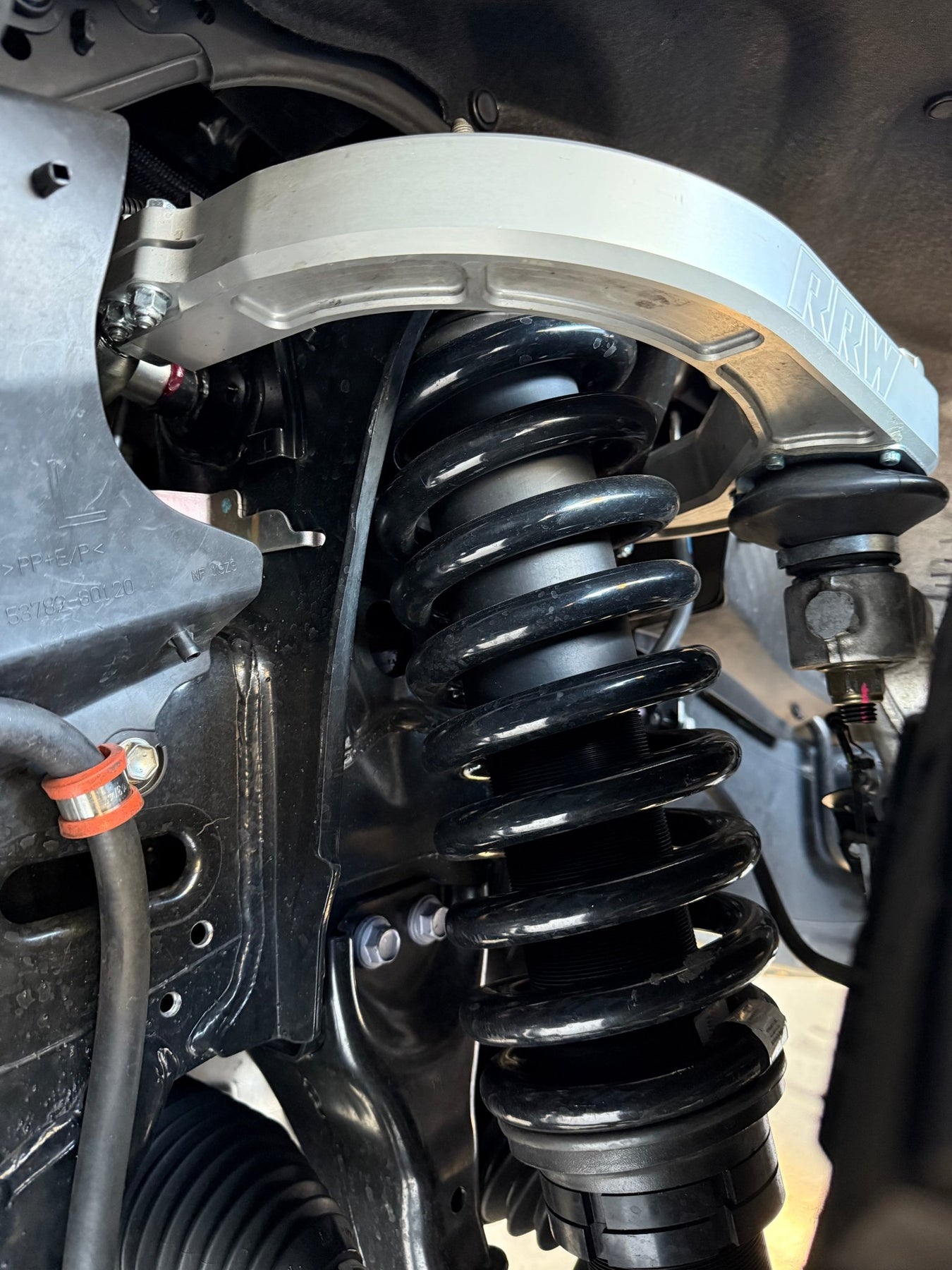

CNC Billet Upper Control Arm (UCA) | 2022+ Toyota Tundra

Name: Billet Uniball UCA | 2022+ Tundra
Brand: Relations Race Wheels
SKU: UCA-TUNDRA-CL
Price: 1100.0 USD
Availability: InStock

CNC Billet Upper Control Arm (UCA) | 2022+ Toyota Tundra - Relations Race Wheels

$ 1,400.00 $ 1,100.00 Save 21%

Shipping calculated at checkout.

Quantity

In stock, ready to ship
Backordered, shipping soon

Early orders expected to ship out end of December.

Later orders ~ Mid to late January 2025

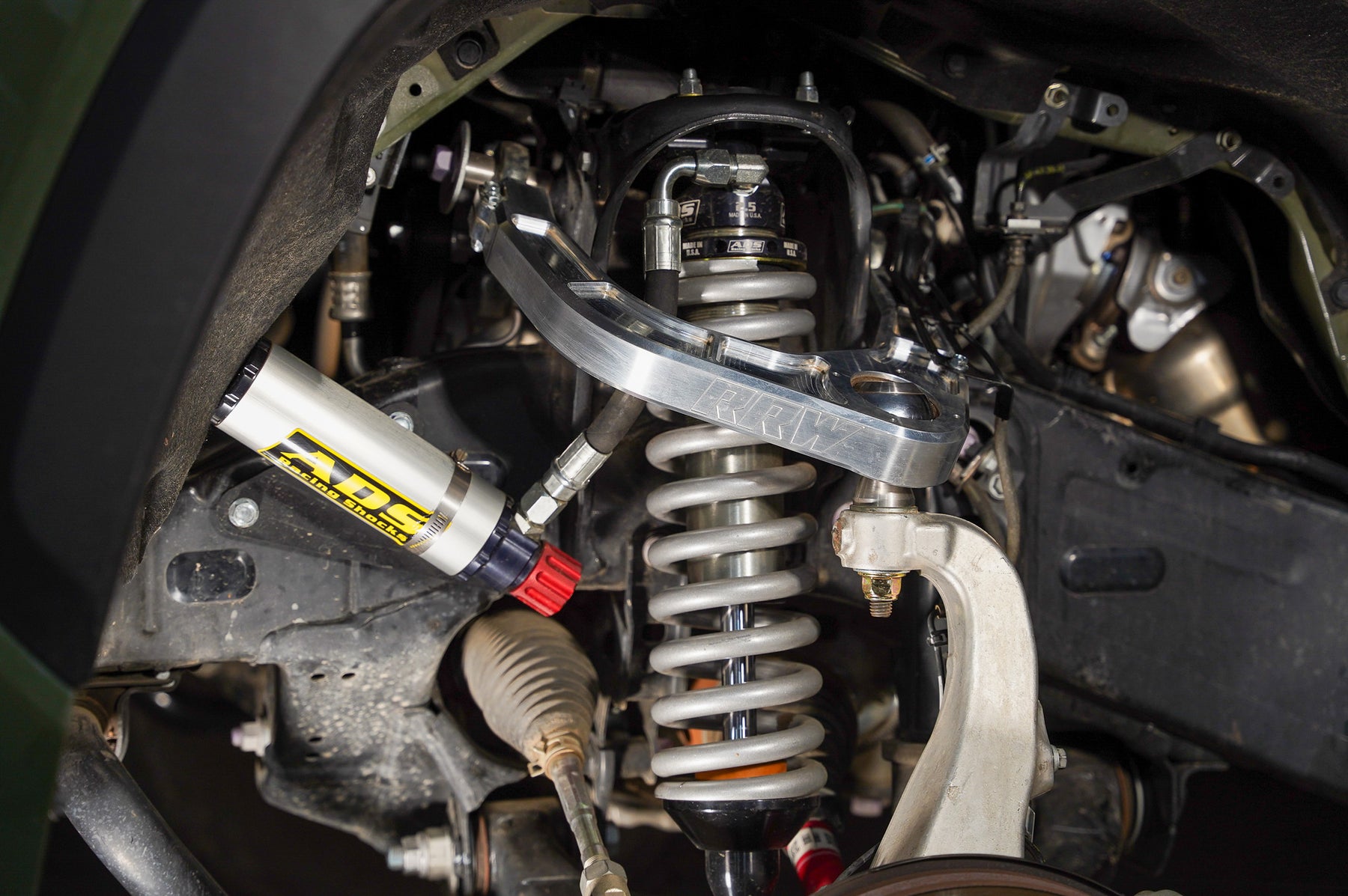

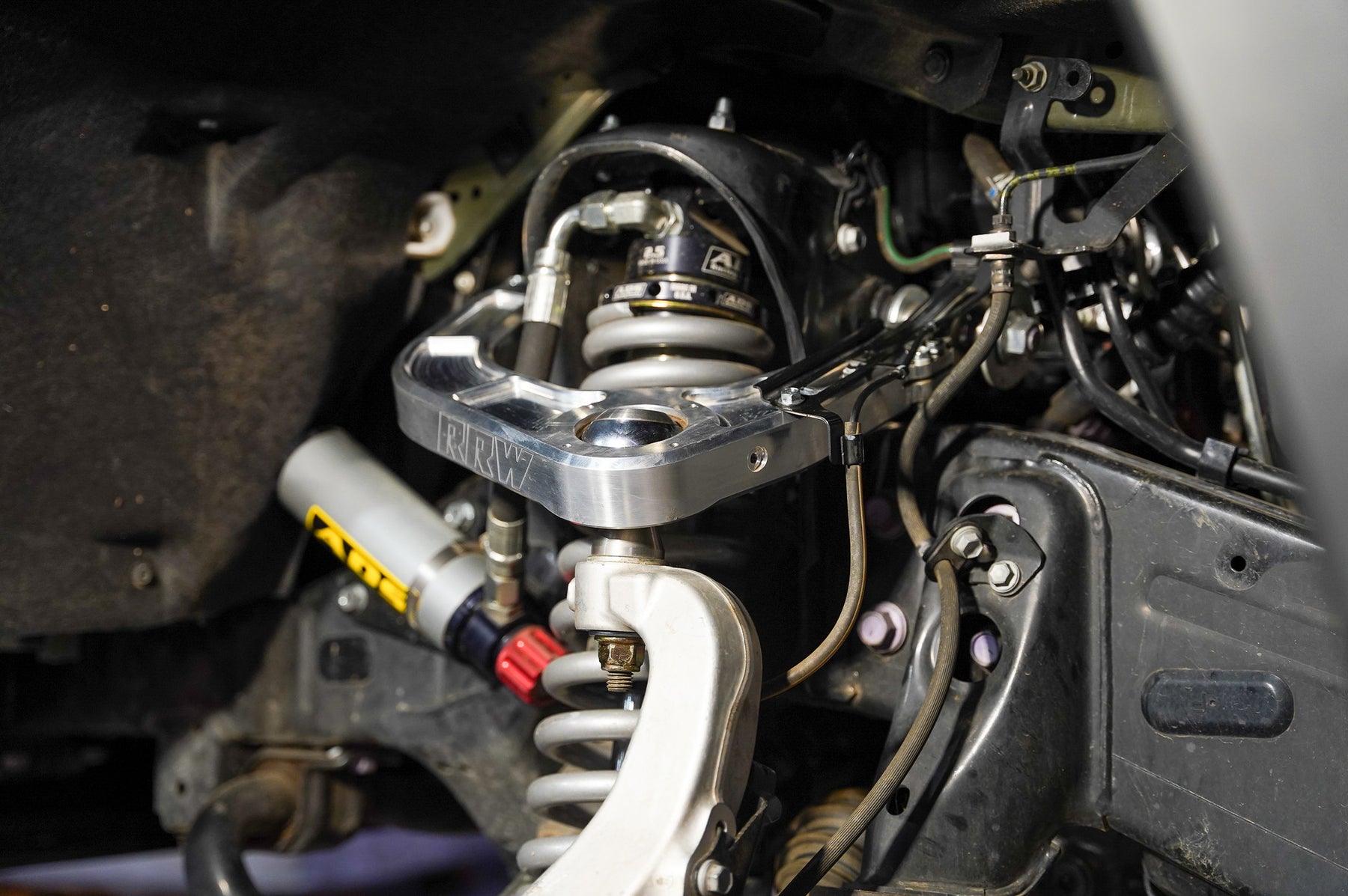

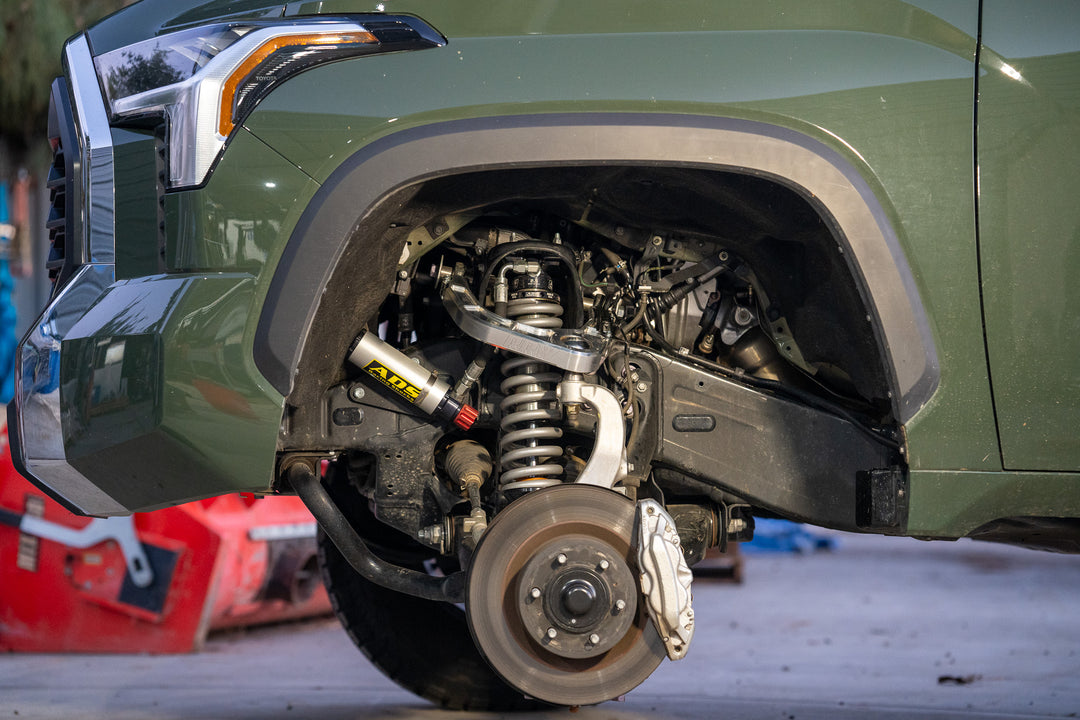

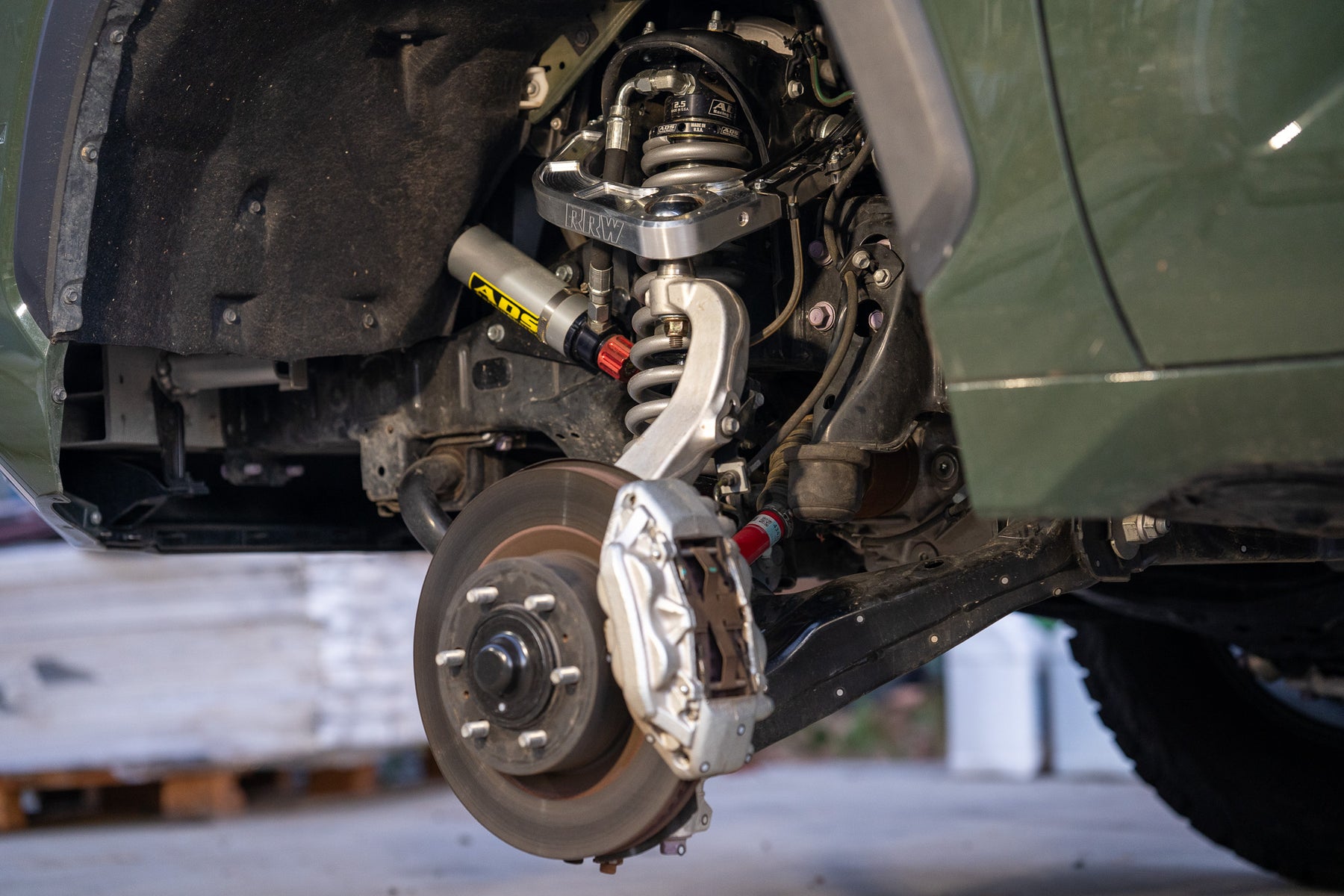

Upgrading the UCA (upper control arm) is a must when leveling or lifting your front end by 2-3”. Our meticulously designed UCA's correct your geometry for the ultimate ride.

Specifications

Uniball (PTFE Kevlar reinforced) bearing completely sealed for long service life
Designed to maintain proper wheel alignment for 1.5in - 3in lift to prevent tire wear
Custom-plated 14mm uniball through-bolt (equal in strength to a 12-point bolt) safely clamps the entire outboard bearing assembly directly to the upright - less chance of failure than 2-piece designs

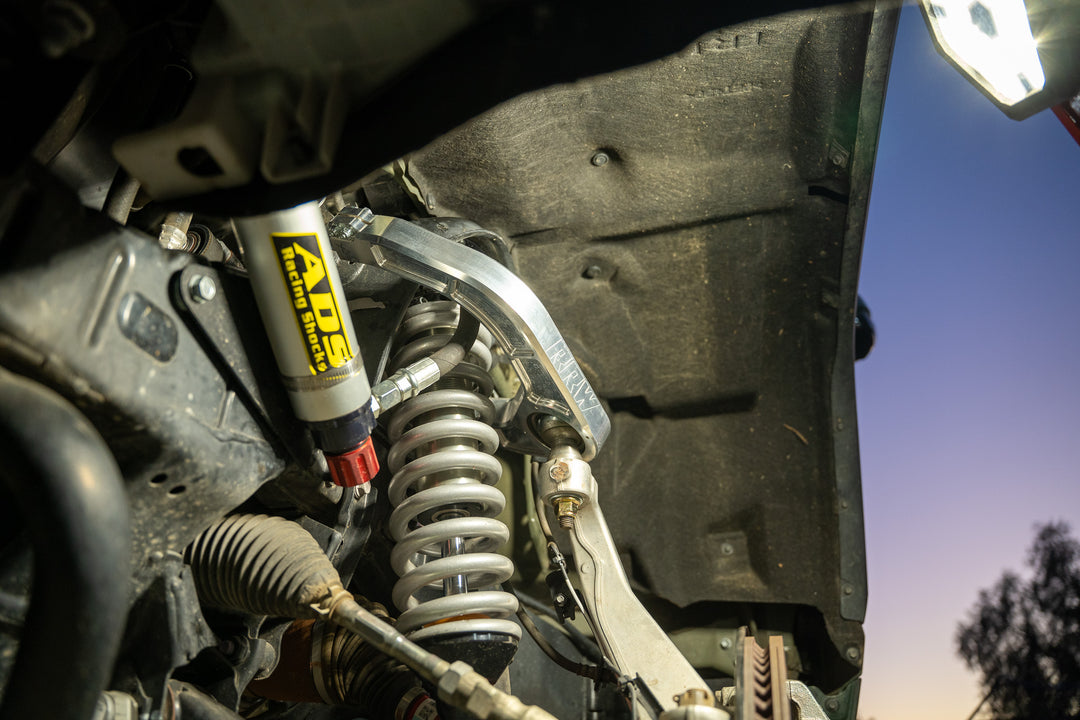

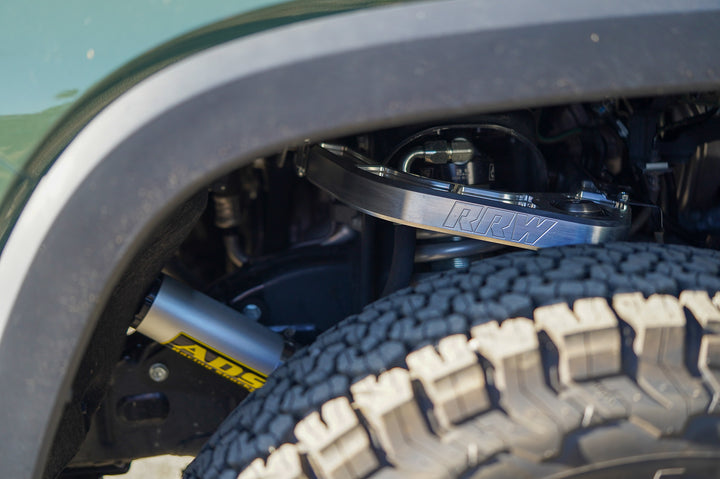

Allows full lock-to-lock tire clearance throughout the suspension travel

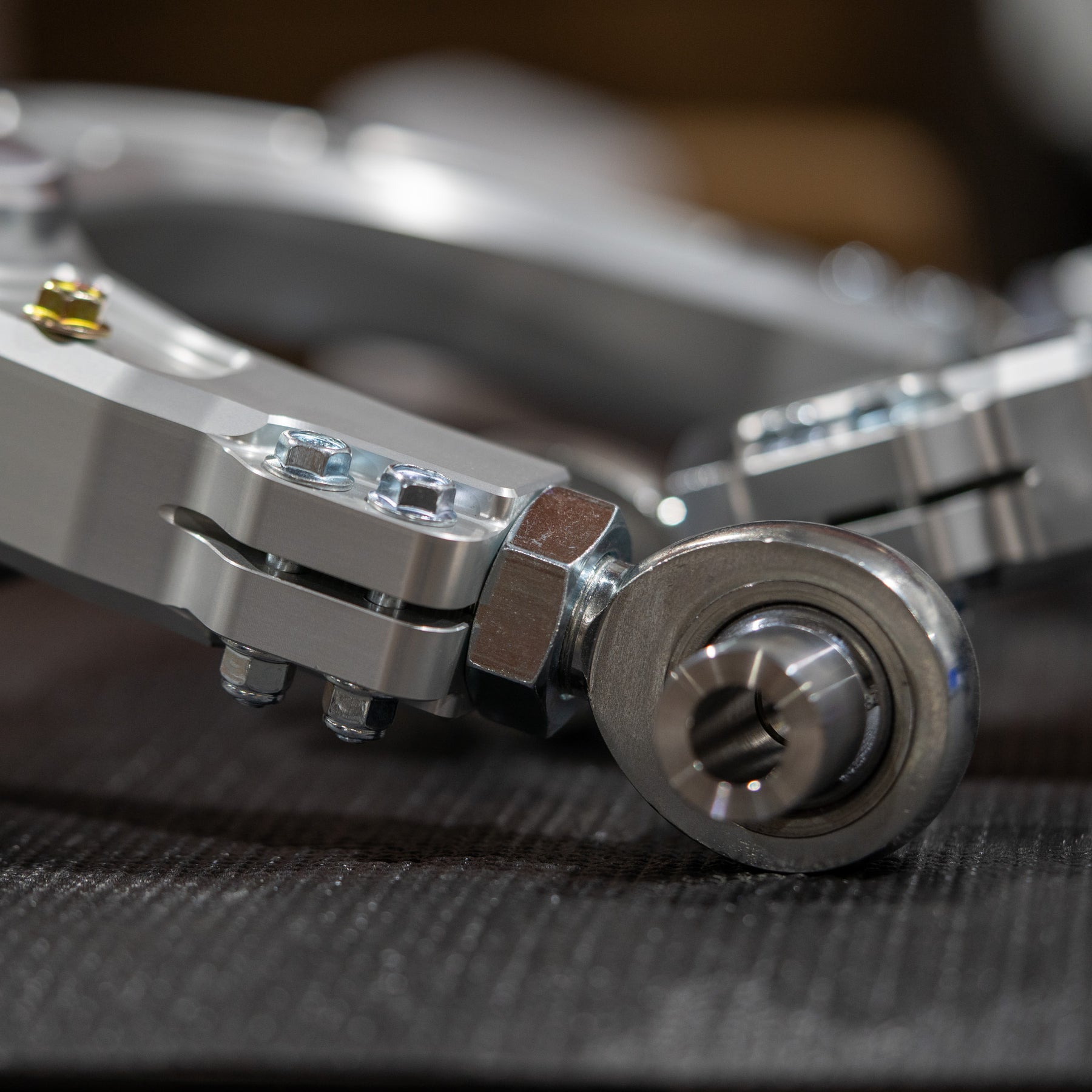

Each inner rod-end has two bolts per side clamp for safety
Each rod-end bolt has a nylock nut - no threaded holes to strip

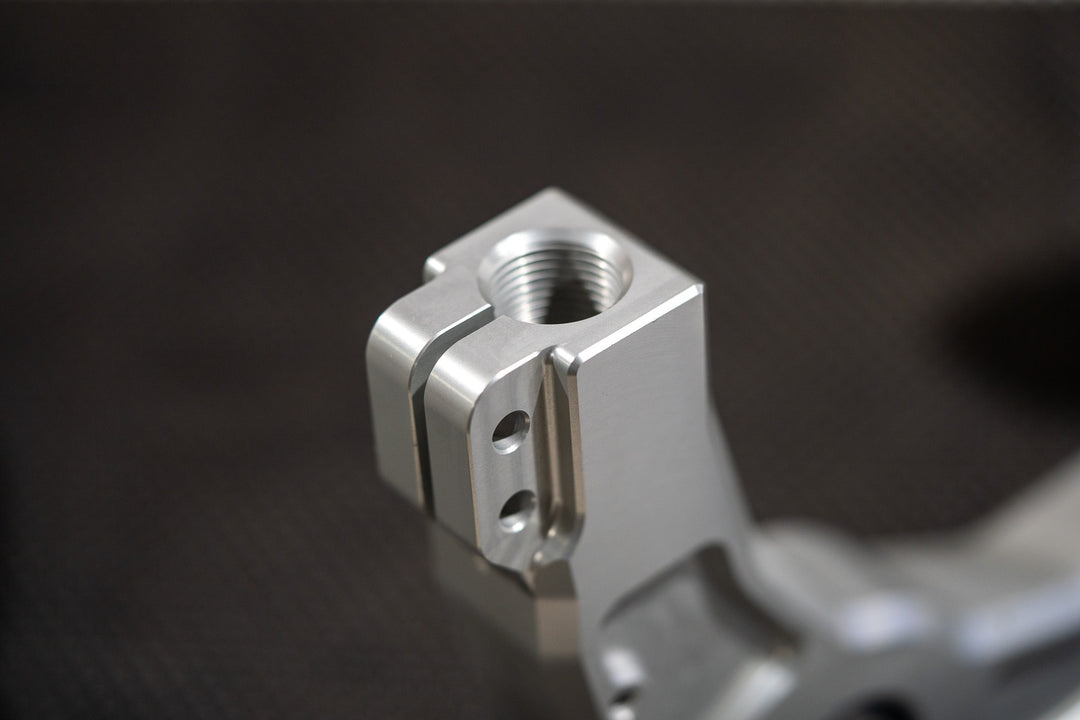

The inner rod-end clamps are fully radiuses inside and out - which means no sharp corners that might cause stress cracks
FEA analyzed for 10,000-pound side impact loads
Finished in Type II Anodize

Product Highlights

American made

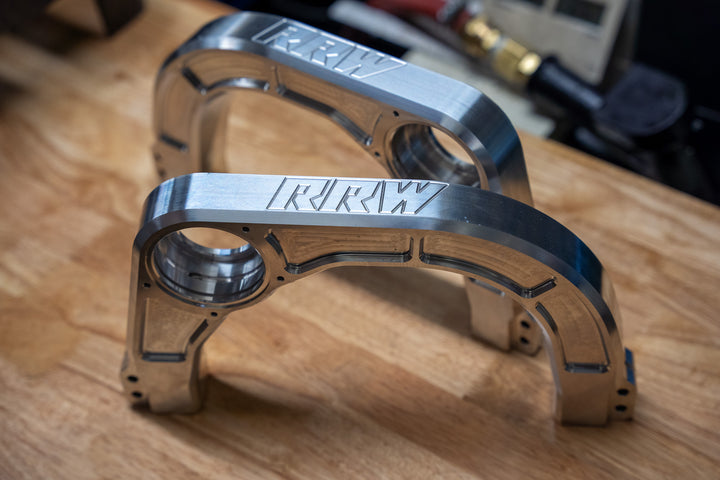

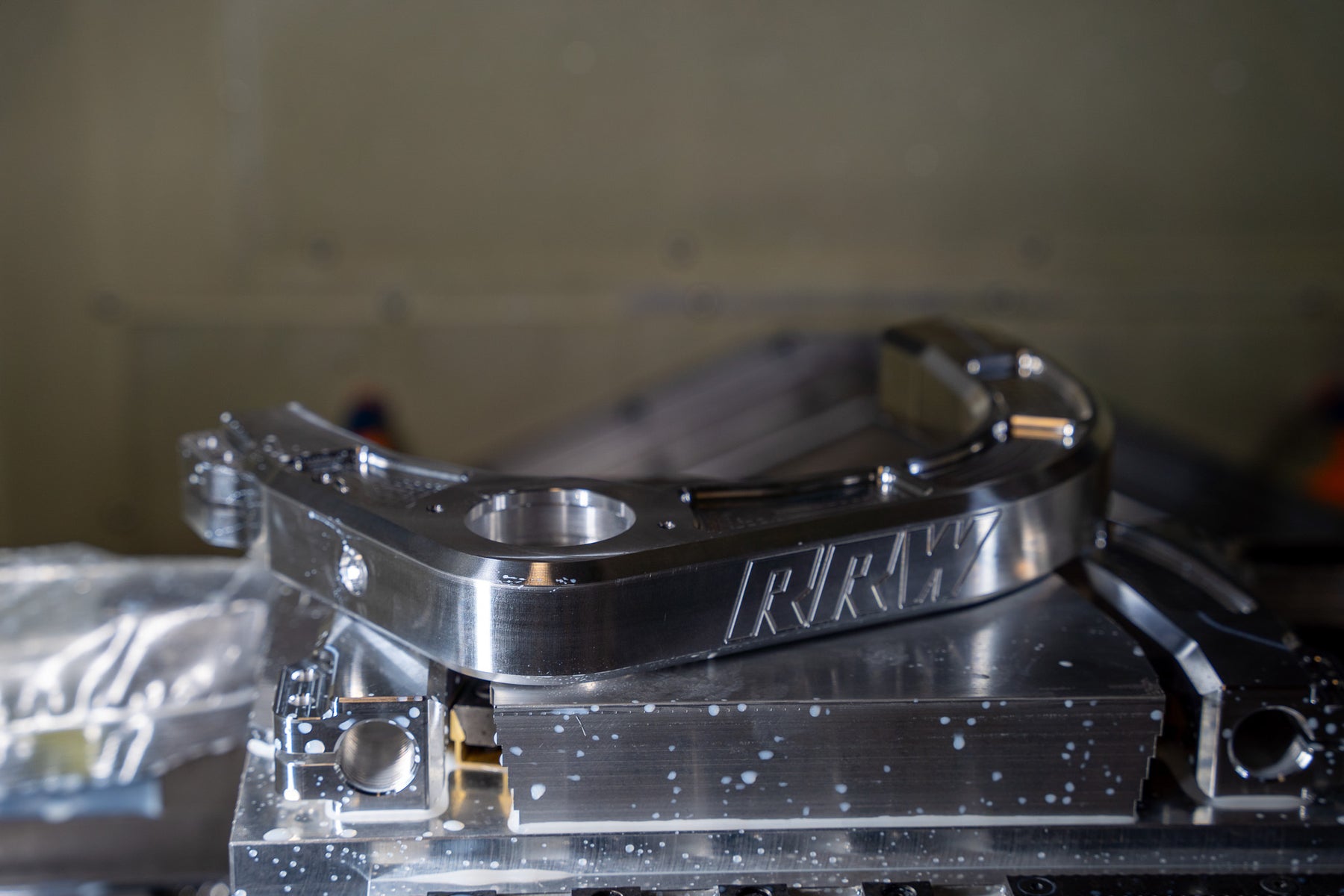

CNC precision machined and anodized in California

Aerospace grade material
Crafted from aerospace 6061-T6 Aluminum

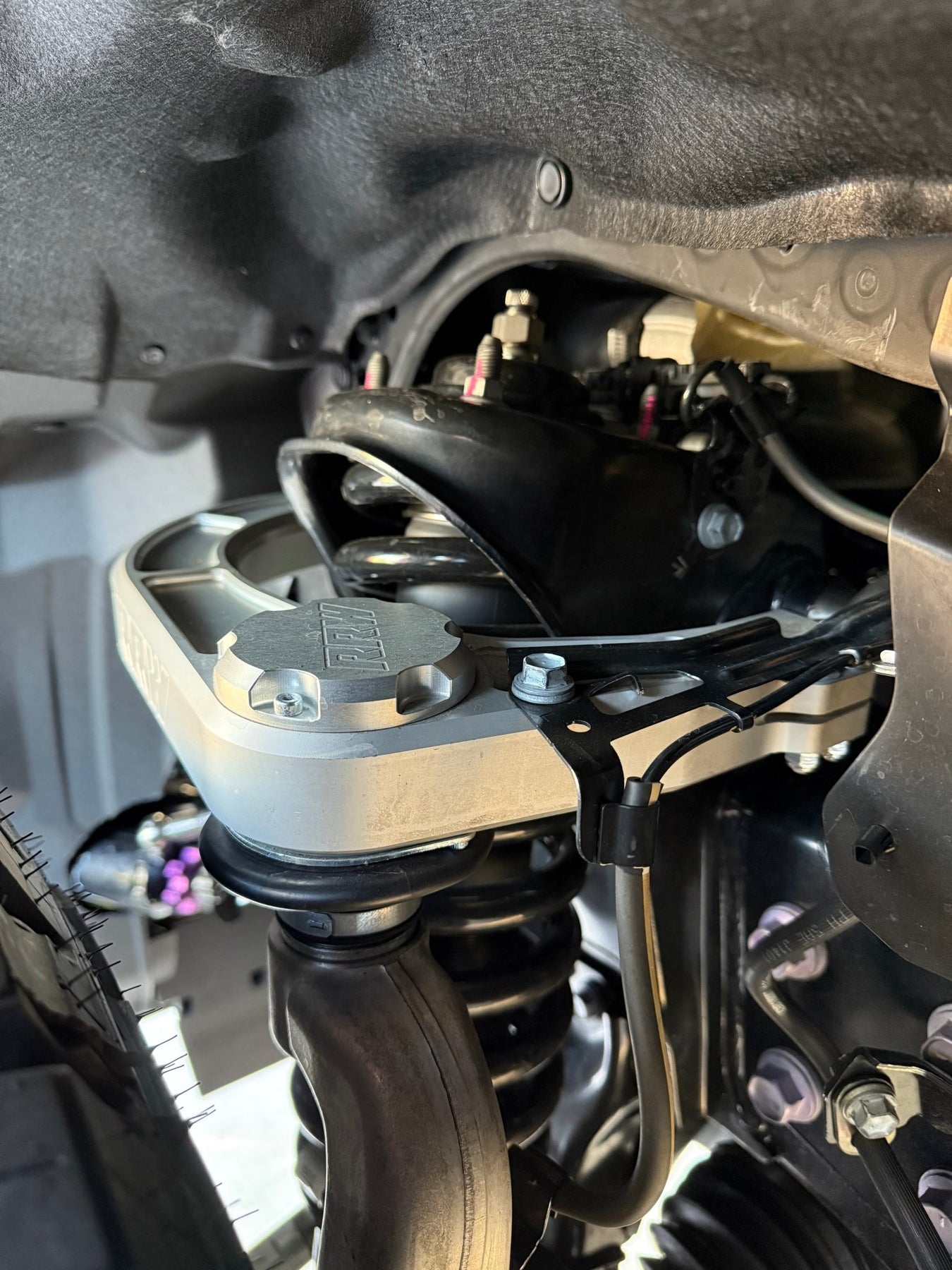

Completely sealed uniball
Only we offer a billet UCA that fully seals the uniball, prolonging the life of the fastest wearing component. By keeping kevlar reinforcement PTFE liner free of debris and grime, its life is prolonged.

CAD Designed and FEA Analyzed
Using 3D scan data, we are able to reverse engineer the geometry and optimize it for lift. The geometry is configured for balanced comfort and performance both on and off road. Various versions of prototypes are made, installed, and analyzed to ensure correction of camber, caster and reduced bump steer.

Machining Details

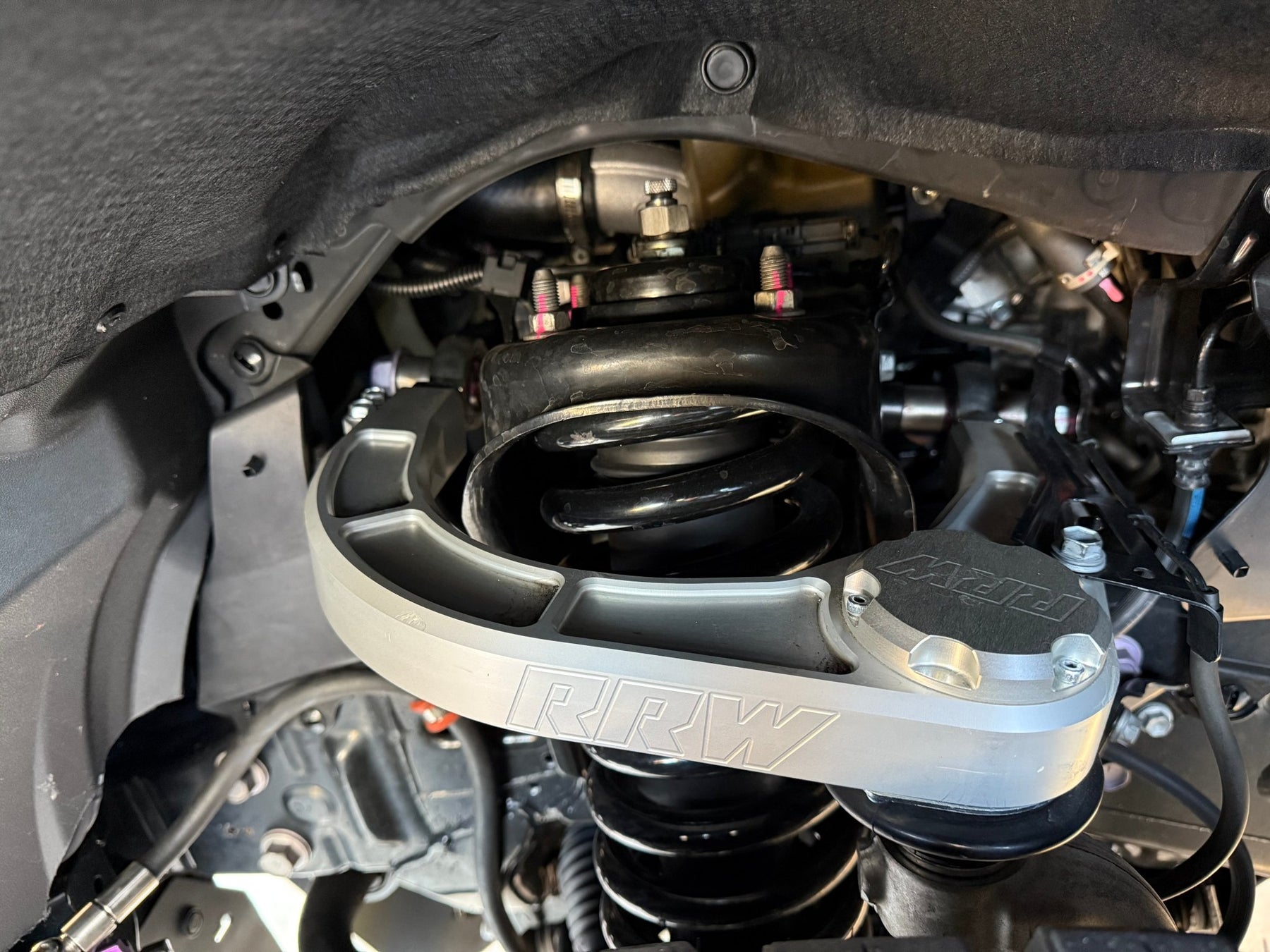

Large chamfer at inner radius increases clearance for the coil spring at full suspension droop.

Hardware & Contents

Huge 1.5 inch Uniball Kevlar reinforced PTFE teflon lining
7/8 inch rod end bearings
SS304 precision machined misalignment spacers
14mm G12.9 uniball through bolt (chrome plated) w/ nylon nut
Rubber dust boot, clamp and laser cut clamp plate
Billet dust clamp
6mm hardware for pinch ends

More detailed information can be found here: https://trailtacoma.com/review/rrw-billet-upper-control-arms/

Vehicle Application

Toyota Tundra (3rd gen, 2022+)

Specifications

Size: 17x8.5
Bolt Pattern: 6x5.5/6x139.7
Center bore for 6x5.5 -12: 106.1 mm (hub-centric for Toyota trucks and GX)
Center bore for 6x5.5 +25: 95.3 mm (hub-centric for 24+ Tacoma, 22+ Tundra and GX550)
Load Rating: 2500 lbs
Backspacing for +25 is 5.73", -12 is 4.28"
